ShockDot

ShockDot provides a cost-effective solution with the largest indicator window for determining mishandling, alerting handlers that your package requires extra care and reducing damage related costs. Tamperproof mechanically activated devices, ShockDot indicators turn red when a potentially damaging impact occurs. Each indicator is serialized and ensures the user that the device has not been switched during transport. The QR code on each device allows you to verify the authenticity of the indicator and provides peace of mind that you have received an impact indicator from the impact detection experts at ShockWatch.

ShockDot indicators are a simple solution for identifying potentially damaged shipments and driving accountability in the supply chain.

Request a Demo"/>
APPLICATIONS
  • Computer/IT Services
  • Medical Devices and Supplies
  • Consumer Electronics
  • Distribution - Electronics
  • Retail
  • Auto and Truck Parts
  • Medical Devices and Supplies
  • Logistics / Transport and Storage
  • Electronics
  • Industrial Equipment
  • Furniture and Fixtures
  • Electronics / Aerospace and Defense

See All Applications

  • Biotechnology and Drugs
  • Manufacturing - Other
  • Packaging/Crating
  • Plastics
  • Energy and Utilities
  • Food Service
  • Appliances
  • Auto and Truck Manufacturers
  • Electronics - Telecommunications
  • Art
  • HVAC
  • Security and Surveillance
  • Electronics - Computer Hardware
  • Glass/Marine
  • Advertising
  • Aerospace and Defense
  • Media
  • Glass
  • Agriculture
  • Marine
  • Robotics
  • Food and Beverage Production
  • Sports Equipment
  • Office Equipment
  • Water Treatment / Filtration
  • Ceramics
  • Energy - Solar Panes
  • Musical Instruments/Equipment
  • Scientific and Technical Instruments
  • Biotechnology and Drugs / Veterinary
  • Construction - Supplies and Fixtures
See Less Applications
  • Specifications
  • Part Numbers
  • Selection Guide
  • Related Documents

Specifications

  • Sensitivity Range 25 - 100G 25 - 100G
  • Impact Duration 0.5 - 50ms 0.5 - 50ms
  • Tolerance ±15% at 68°F, 1 ATM ±15% at 20°C, 1 ATM
  • Operating Temperature -13°F to 176°F -25°C to 80°C
  • Weight 0.07oz 1.98g
  • Dimensions 3.8 in x 3.8 in 96.52 mm x 96.52 mm

Part Numbers

  • 100G - Green SD-100G
  • 75G - Orange SD-75G
  • 50G - Red SD-50G
  • 37G - Purple SD-37G
  • 25G - Yellow SD-25G

Selection Guide

0-1ft³0 - .03 m³ 1-5ft³.03 - .14 m³ 5-15ft³.14 - .42 m³ 15-50ft³.42 - 1.42 m³ 50+ft³1.42+ m³
0-10 lbs0-5 kg SD-100G (Green) SD-100G (Green) SD-75G (Orange) SD-75G (Orange) SD-75G (Orange)
10-25 lbs5-11 kg SD-100G (Green) SD-75G (Orange) SD-75G (Orange) SD-50G (Red) SD-50G (Red)
25-50 lbs11-23 kg SD-75G (Orange) SD-75G (Orange) SD-50G (Red) SD-50G (Red) SD-37G (Purple)
50-100 lbs23-45 kg SD-75G (Orange) SD-50G (Red) SD-50G (Red) SD-37G (Purple) SD-37G (Purple)
100-250 lbs45-113 kg SD-50G (Red) SD-50G (Red) SD-37G (Purple) SD-37G (Purple) SD-25G (Yellow)
250-1,000 lbs113-454 kg SD-50G (Red) SD-50G (Red) SD-37G (Purple) SD-25G (Yellow) SD-25G (Yellow)
1,000+ lbs454+kg -- SD-37G (Purple) SD-25G (Yellow) SD-25G (Yellow) SD-25G (Yellow)

Accessories

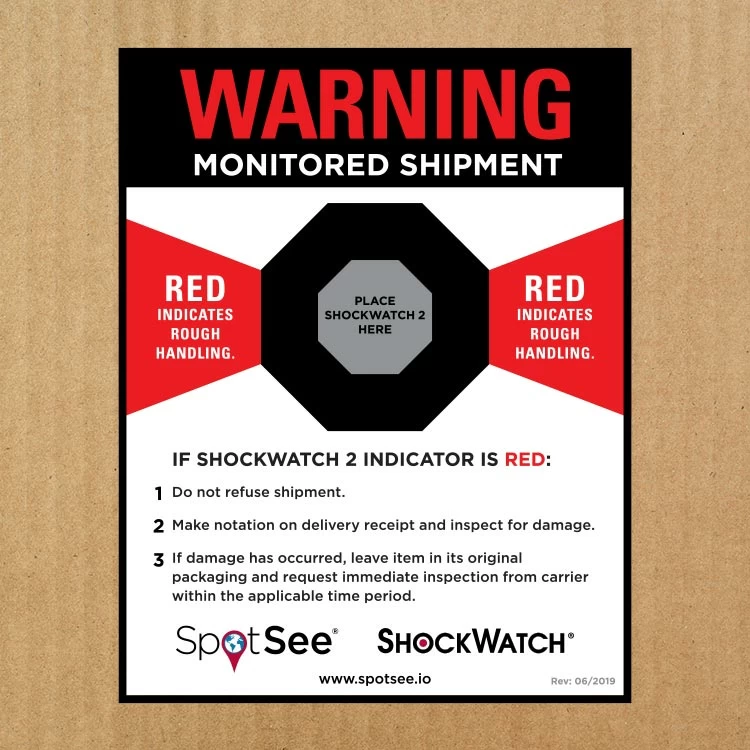

Companion Label

A companion label provides a visual warning that the package is being monitor and has instructions on what to do should mishandling occur.

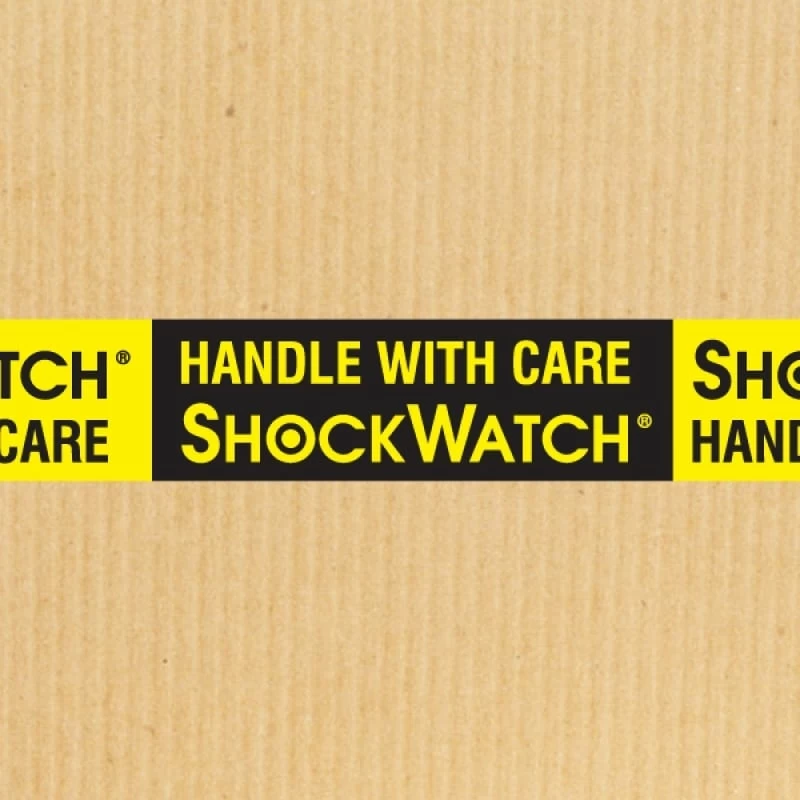

Alert Tape

ShockWatch packing tape provides an unmistakable visual alert that impact indicators are in use and reinforcement that proper handling procedures are required.

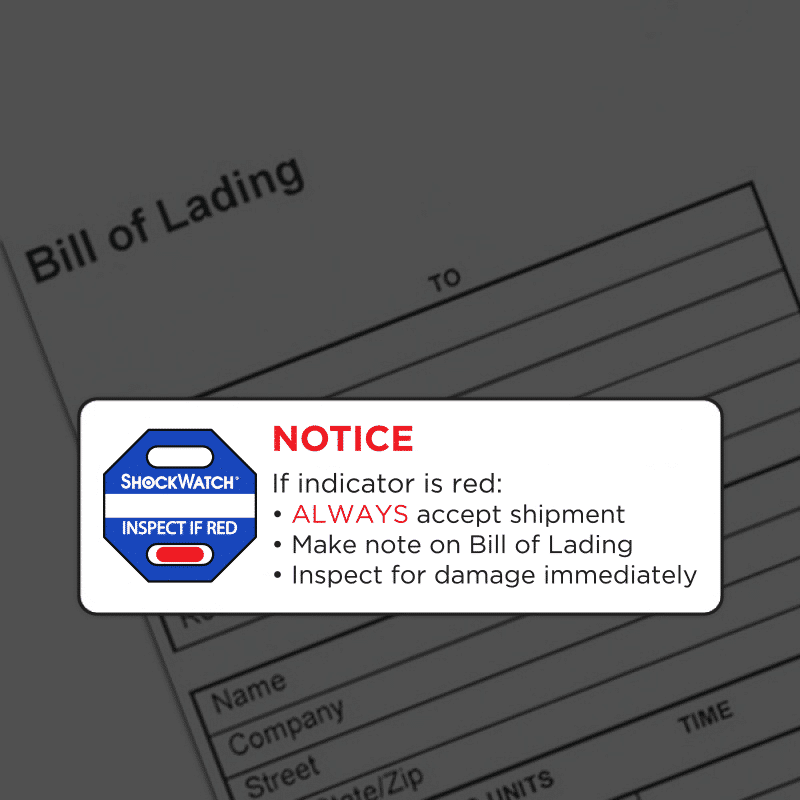

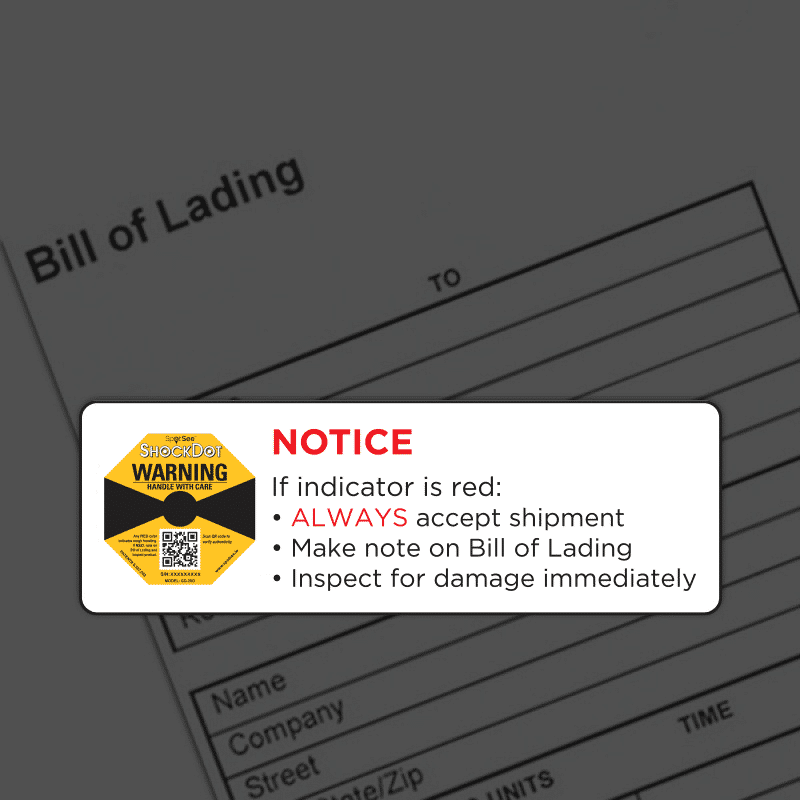

Alert Sticker

This unmistakable alert affixes directly to the bill of lading to caution the carrier and consignee that the shipment is being monitored for mishandling.
